Product Specification

Brand Name: NBSANMINSE

Type: Cylinder

Model Number: CD85N

Bore size: 8 mm

Stroke: 25 50 75 100 125 150 175 200 225 250 275 300mm

Fluid: Air

Action: Double acting, Single rod

Ambient and fluid temperature: - 20 to 80 C

Piston speed: 50 to 1500 mm/s

Proof pressure: 1.5MPa

Max. operating pressure: 1.0MPa

Description:



The images shown are not all the actual item and are for your reference only

HTB1FGxxdcnI8KJjSspeq6AwIpXa7HTB1g2e6m3MPMeJjy1Xcq6xpppXa1IMG_20170915_092436_IMG_20170915_092440_


Action:                                                          Double acting, Single rod

Fluid :                                                            Air

Proof pressure :                                         1.5MPa

Max. operating pressure :                        1.0MPa

Ambient and fluid temperature :              - 20 to 80℃(Built-in magnet: -10 to 60℃)

Cushion :                                                        Rubber bumper (Non-rotating:Rubber bumper only), Air cushion (Except Ø   8 )

Lubrication :                                                   Not required . Use turbine oil Class 1 ISO VG32, if lubricated.

Piston speed :                                                50 to 1500 mm/s

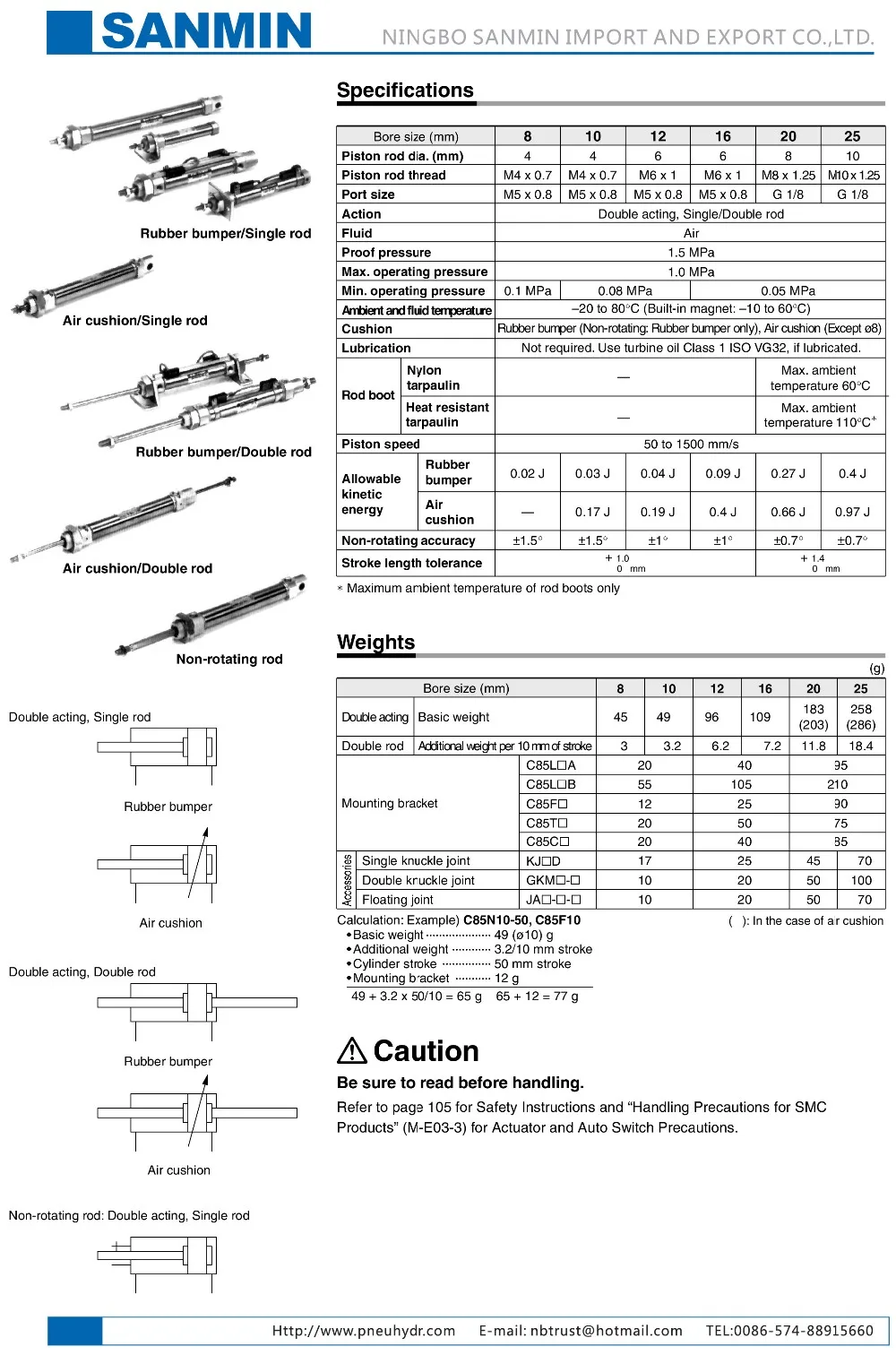

c85 1

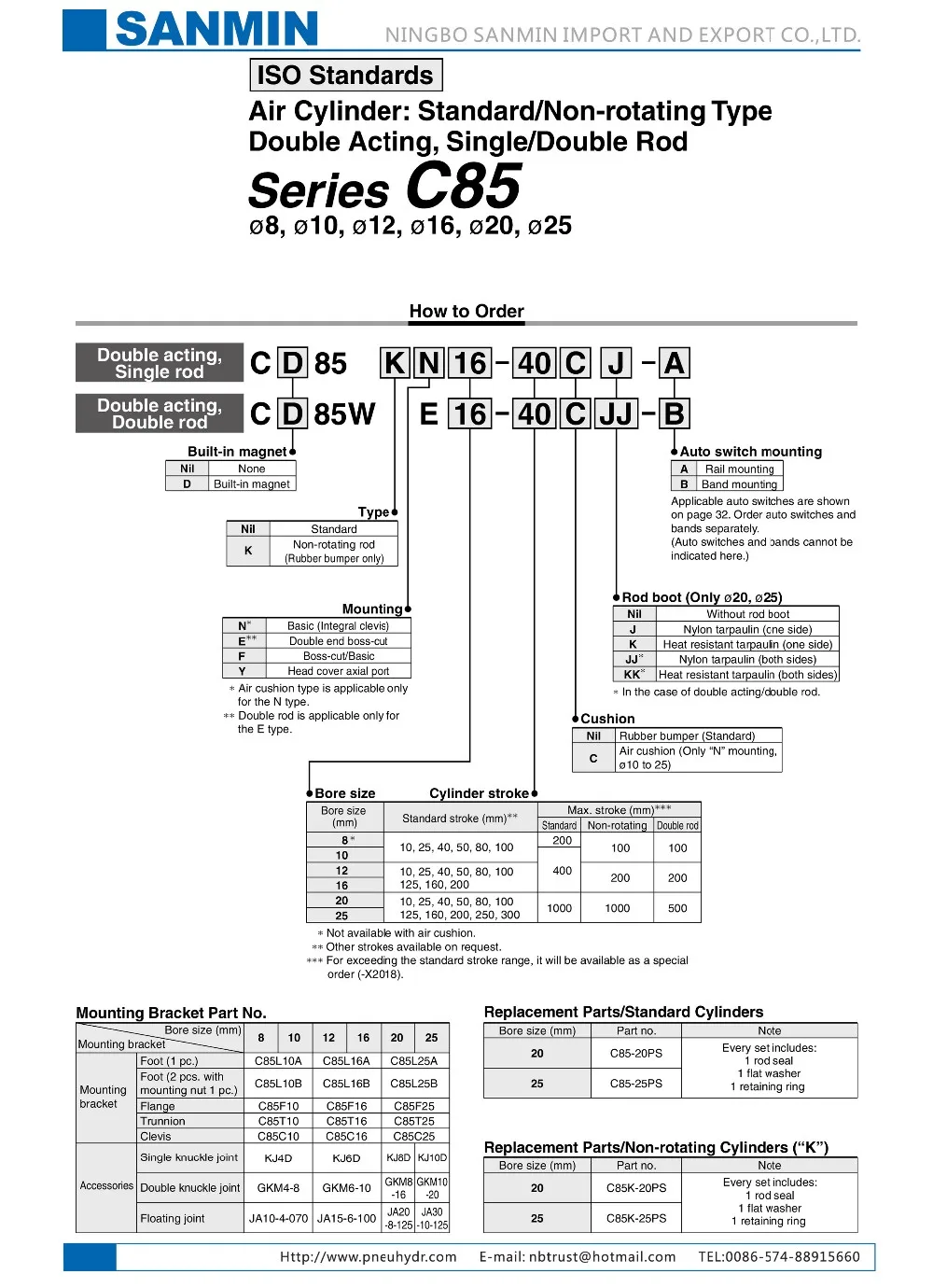

c85 2
